Product's brief introduction:
NXJ4 series of four-core boundling extension wire-clamp is applied to overhead insulation lead's terminal or extension section's two ends with voltage being or below 1KV for fastening and tightening insulation lead,it adopts four-core rut-combination, groove-combination structure,the gripping four leads would be beam-shape after being gripped with four insulation leads(doesn't need to shell insulation layer)and fastening bolt.For using wedge-shape self-fastening structure,it would be fastened and fixed after fixing drawn-ring,moreover,it could possess bigger-than-normal gripping-power,the products is classified into NXJ4-A type and NZXJ4-B type on base of structure.

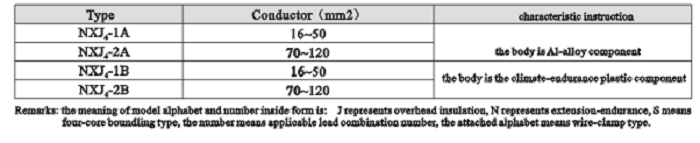

Model specification and main technological data:
|
