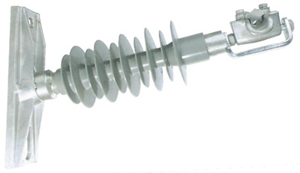

Composite Horizontal Line Post Insulator in Silicone Rubber Type RL-FC-*

. Composite Horizontal Line Post Insulator in Silicone Rubber Type RL-FC-*

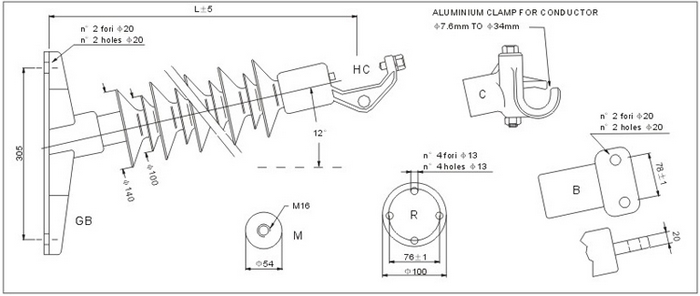

Dimensions tolerance acc,to IEC61952

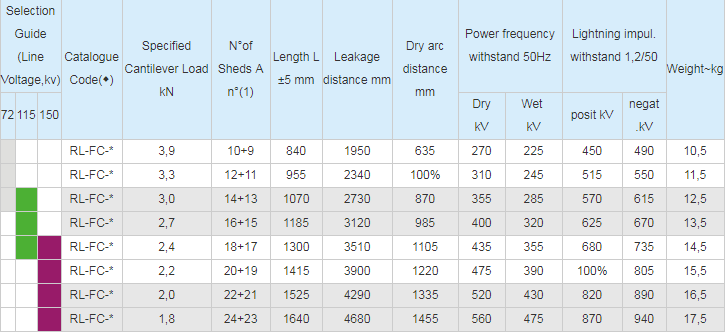

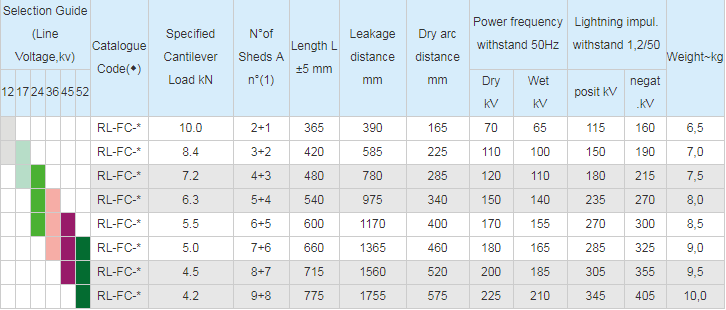

NOTE:Once chosen the insulator that is the most suitable to the characteristics of the line on which you have to install it,in order to obtain the total length of the insulator(L),please select the kind of fitting end you have to use and refer to the following table:

Dimensions tolerance acc,to IEC61952

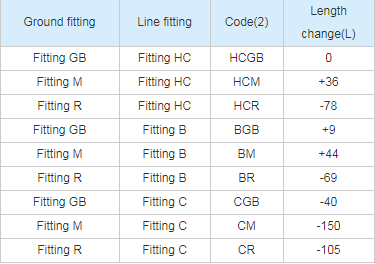

NOTE:Once chosen the insulator that is the most suitable to the characteristics of the line on which you have to install it,in order to obtain the total length of the insulator(L),please select the kind of fitting end you have to use and refer to the following table:

Specified Cantilever Load SML-IEC61952

Max.Design Cantilever Load MDCL=65%of SCL

Specified Tensile Load(STL) 15kN

Max.design compression 15kN

Max.torsion Load 15daN*m

The SCL can be increased,please contact us.

The metal fittings can be in aluminium or galvanized steel

*Key to the catalogue numbers

*Key:ISI-FC-A(1)-A(2)

Example:ISI-FC-A16+15-HCGB

Please don't hesitate to contact us directly for obtaining possible explanations or different solutions.

These insulators are produced and tested according to IEC61952. It's possible to have all the other combinations.
